★ FLAGSHIP2+2 Flat for Lift

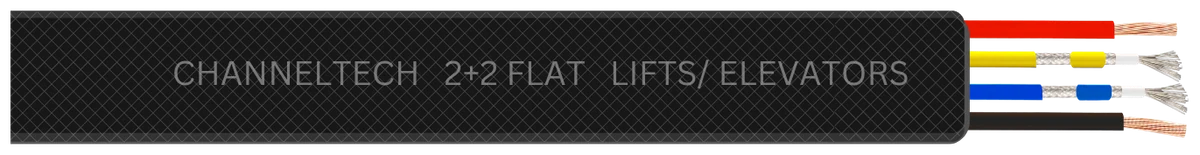

CC-9511K-90 · Sr No 38A Channeltech-brand lift cable, made by WIAN's parent company.2+2 Flat for Lift — 2 power + 2 video multi-strand tinned copper, FRLS. FRLS, multi-strand, 90 m coil pairs. HD / analog camera in the lift.
| Construction | 2 power + 2 video multi-strand tinned copper, FRLS |
| Jacket | FRLS rubberised PVC · Black |
| Use | HD / analog camera in the lift |
| Coil | 90 m · Coil pair 90+90 · matched pairs |
Fix the cable at the shaft midpoint with the loop hanging free and never coil spare length in the car top — flexing life depends on the loop radius.
Printed from www.wian.in · +91 93262 74009 · info@wian.in · Specifications subject to change; refer to the current TDS.
Built for
Enquire about CC-9511K-90
Tell us the number of cameras or the shaft height and we'll work out coils and connect you with a dealer.
CC-9511K-90 — common questions
What is CC-9511K-90?
CC-9511K-90 is the Channeltech 2+2 Flat for Lift: 2 power + 2 video multi-strand tinned copper, frls, with an FRLS rubberised PVC jacket built to flex continuously in a lift shaft. Use: hd / analog camera in the lift. 90 m coil pairs.
Is this a WIAN cable?
No — lift cables are Channeltech-brand products, made by WIAN's parent company Channeltech Systems Pvt Ltd and approved by leading lift OEMs.
Which lift camera does CC-9511K-90 suit?
HD and analog cameras — two video cores and two power cores in one flat cable.
Why must a lift cable be flat and FRLS?
A lift cable flexes millions of times over its life and hangs in a shared shaft, so it needs a rubberised, flame-retardant low-smoke jacket and multi-strand conductors that do not fatigue. Ordinary round LAN cable is not built for this.
