The range at a glance.
Thirteen cables, three series, one logic: pick the series, then indoor or outdoor, then pure copper or hybrid CCAM. All supplied in 305 m tangle-free boxes or wooden reels.
GeM Approved OEM
Pure copper or hybrid CCAM?
Pure copper — solid 23 / 24 AWG conductors. For tenders, long PoE runs and heavy networks; carries PoE++ comfortably.
Hybrid CCAM — copper skin over an aluminium-alloy core, lower price. Wins budget CCTV, small office and retrofit jobs. We call CCAM CCAM — your customers never get a surprise.
Compare cables
Pick any three. Values with numbers come from the datasheets; a dash means the datasheet for that cable is still being added.
| | | |
|---|---|---|---|
| Series | Spark Series | Neo Series | Gold Series ★ |
| Category | CAT6 UTP | CAT6A U/UTP | CAT6A U/UTP |
| Conductor | Pure copper · 24 AWG | Solid bare electrolytic-grade copper, 23 AWG | Solid bare electrolytic-grade copper, 23 AWG |
| Jacket | LSZH · Dark Grey | LSZH, grey | FR-PVC |
| Placement | Indoor | Indoor | Indoor |
| Twin Core Separator | Yes | Yes | Yes · teeth design |
| Wi-Barrier Tape | — | — | Yes |
| Armour | — | — | — |
| Anti-rodent / termite | — | — | — |
| Speed | 1 Gbps | 10 Gbps | 10 Gbps |
| IP camera run (PoE) | 100 m | 200 m | 200 m |
| Cable diameter | — | 6.0 mm ± 0.5 mm | 7.4 mm ± 0.5 mm |
| Conductor resistance | — | 93.8 Ω/km max | 93.8 Ω/km max |
| Operating temperature | — | -15 to +75 °C | -15 to +75 °C |
| Standards | — | ANSI/TIA-568.2-D, ISO/IEC 11801 2nd Ed. | ANSI/TIA-568.2-D, ISO/IEC 11801 2nd Ed., IEC 60332-1, IEC 61156-5 |
| Pack | 305 m Tangle-Free Box or Wooden Reel | 305 m Tangle-Free Box or Wooden Reel | 305 m Tangle-Free Box or Wooden Reel |
| GeM Approved OEM | Yes | Yes | Yes |
| Datasheet | — | ||
| View WC-1212G → | View WC-2212G → | View WC-2217G → |
WIAN LAN cables — common questions
How is the WIAN range organised?
Three series — Spark (CAT6, entry grade), Neo (CAT6A, 10G ready) and Gold (CAT6A with Wi-Barrier Tape, the flagship). Each comes indoor or outdoor, and Spark and Gold offer pure copper or hybrid CCAM. Thirteen cables in all, every one in 305 m boxes or reels.
How do I read a WIAN part code?
WC = WIAN cable. The first digit is the category (1 = CAT6, 2 = CAT6A), the second is the conductor (1 = hybrid CCAM, 2 = pure copper), and the last letter is the jacket colour — W white or G grey for indoor, K black LDPE for outdoor. Outdoor is always a K code.

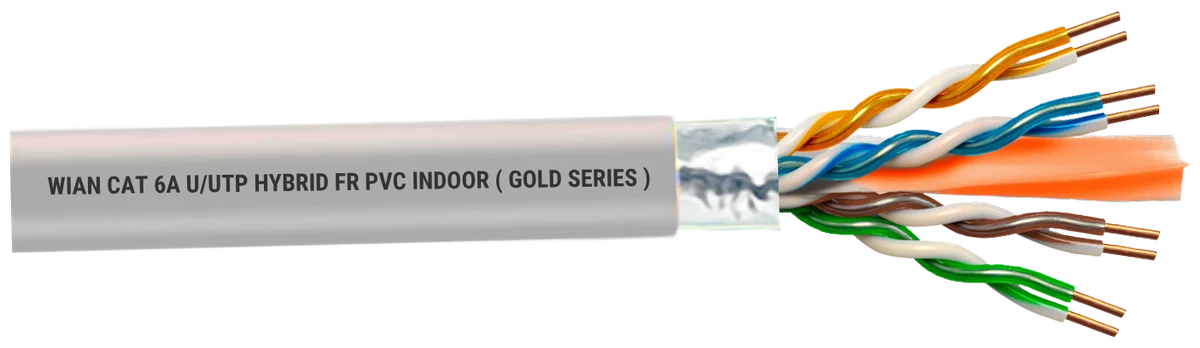

What is Wi-Barrier Tape?
A non-metallic barrier fitted on every Gold Series cable that stops alien cross-talk from neighbouring cables in a bundle, riser or tray. Because it is non-metallic the cable stays U/UTP — no earthing, standard jacks and patch panels.
Are WIAN cables ISI marked and made in India?
Yes. WIAN cables carry ISI, ISO 9001 and CE marks, are manufactured in India by Channeltech Systems, and are Fluke-tested to their category standard.
