CAT6A U/UTP Patch Cords

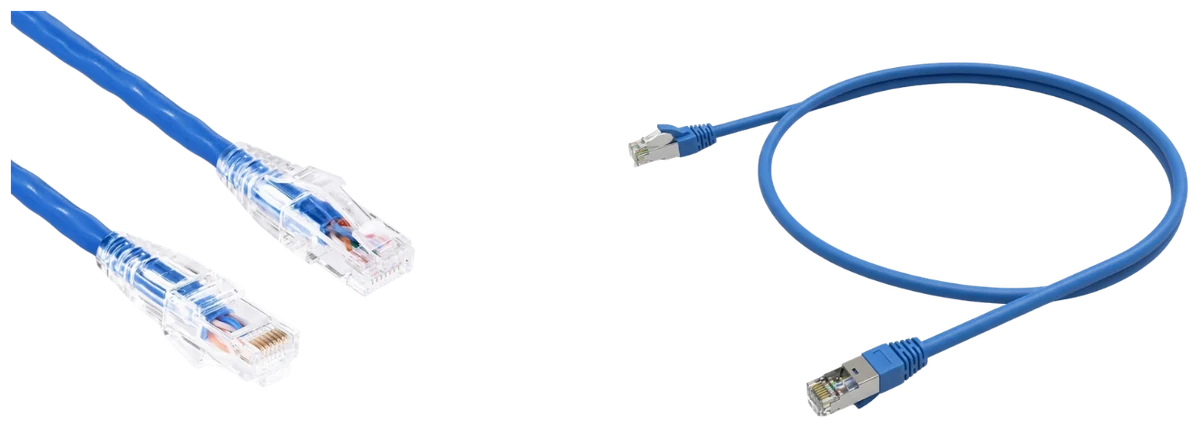

WP-2212 · eleven lengths · Sr No 14–24Slim premium CAT6A U/UTP patch cord in pure copper 24 AWG stranded, LSZH jacket, RJ-45 both ends, with Twin Core Separator and Wi-Barrier protection. Eleven lengths from 0.3 m to 30 m. Two per outlet — rack end and desk end.
| Category | CAT6A · U/UTP |
| Conductor | 100% EC-grade Copper · 24 AWG stranded |
| Jacket | Slim premium LSZH |
| Connectors | RJ-45 both ends |
| Wi-Barrier Tape | Yes |
| Pack | Individually packed |
Two per outlet: rack end and desk end. Keep the desk-end cord under 5 m and the rack-end under 3 m for a clean 10G channel.
Technical data
Transcribed from the WIAN technical datasheet. The PDF carries the full high-frequency table (insertion loss, NEXT, PSNEXT, ACRF, return loss to 500 MHz).
Construction
| Conductor | Stranded bare copper, 24 AWG |
| Insulation | Polyolefin |
| Insulation diameter | 1.0 mm ± 0.05 mm |
| Pairing | Twisted into two core |
| Sheath | LSZH, grey (RAL 7035) |
| Cable diameter | 5.7 mm ± 0.3 mm |
| Connectors | RJ-45 unshielded, crimped both ends, transparent boot |
Electrical
| Conductor resistance | 135 Ω/km max |
| Mutual capacitance | 5.6 nF/100 m max |
| Resistance unbalance | 5 % max |
| Delay skew | ≤ 45 ns/100 m |
| NVP | 69 % |
| Characteristic impedance | 100 ± 15 Ω |
| High-frequency performance | Complies with ANSI/TIA-568.2-D channel specification |
Mechanical
| Minimum bend radius | ≤ 8 × cable diameter |
| Installation temperature | 0 to +50 °C |
| Operating temperature | -20 to +75 °C |
Standards
Lengths and part codes
| 0.3 m | 0.5 m | 1 m | 2 m | 3 m | 5 m | 7 m | 10 m | 15 m | 20 m | 30 m |
| WP-2212-0.3 | WP-2212-0.5 | WP-2212-1 | WP-2212-2 | WP-2212-3 | WP-2212-5 | WP-2212-7 | WP-2212-10 | WP-2212-15 | WP-2212-20 | WP-2212-30 |
Enquire about patch cords
Patch cords — common questions
What lengths do WIAN patch cords come in?
Eleven lengths from 0.3 m to 30 m (part code WP-2212 followed by the length, e.g. WP-2212-1 for one metre), each individually packed.
Are WIAN patch cords pure copper?
Yes — 100% EC-grade copper, 24 AWG stranded, with a slim premium LSZH jacket, Twin Core Separator and Wi-Barrier protection. Fluke-tested to 10 Gbps.
How many patch cords does an outlet need?
Two — one at the rack end and one at the desk end. Plan two per outlet when you order.
Are the patch cords covered by WIAN's GeM approval?
Yes. The GeM Approved OEM listing covers WIAN LAN cables and CAT6A patch cords.
