Technical datasheet · www.wian.in

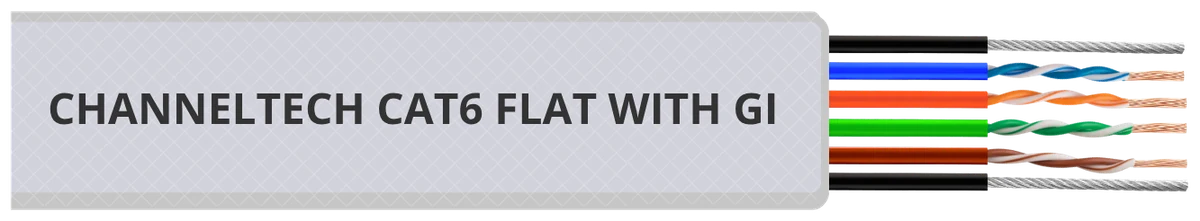

CAT6 Flat — 4 Pair + GI Rope
CC-8261G-90 · Sr No 36A Channeltech-brand lift cable, made by WIAN's parent company.CAT6 Flat — 4 Pair + GI Rope — 4 twisted pairs + galvanised GI rope messenger, multi-strand, FRLS. FRLS, multi-strand, 90 m coil pairs. Heavy-duty / tall shafts — carries its own weight.
| Construction | 4 twisted pairs + galvanised GI rope messenger, multi-strand, FRLS |
| Jacket | FRLS rubberised PVC · Grey |
| Use | Heavy-duty / tall shafts — carries its own weight |
| Coil | 90 m · Coil pair 90+90 · matched pairs |
Fix the cable at the shaft midpoint with the loop hanging free and never coil spare length in the car top — flexing life depends on the loop radius.
Printed from www.wian.in · +91 93262 74009 · info@wian.in · Specifications subject to change; refer to the current TDS.
Built for
Enquire about CC-8261G-90
Tell us the number of cameras or the shaft height and we'll work out coils and connect you with a dealer.
CC-8261G-90 — common questions
What is CC-8261G-90?
CC-8261G-90 is the Channeltech CAT6 Flat — 4 Pair + GI Rope: 4 twisted pairs + galvanised gi rope messenger, multi-strand, frls, with an FRLS rubberised PVC jacket built to flex continuously in a lift shaft. Use: heavy-duty / tall shafts — carries its own weight. 90 m coil pairs.
Is this a WIAN cable?
No — lift cables are Channeltech-brand products, made by WIAN's parent company Channeltech Systems Pvt Ltd and approved by leading lift OEMs.
Which lift camera does CC-8261G-90 suit?
IP cameras in tall or heavy-duty shafts — the galvanised GI rope messenger carries the cable's own weight.
Why must a lift cable be flat and FRLS?
A lift cable flexes millions of times over its life and hangs in a shared shaft, so it needs a rubberised, flame-retardant low-smoke jacket and multi-strand conductors that do not fatigue. Ordinary round LAN cable is not built for this.
